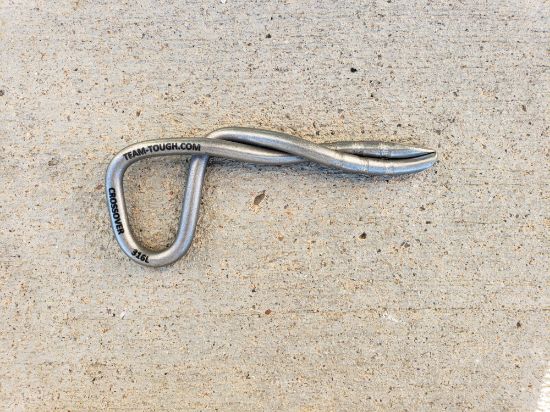

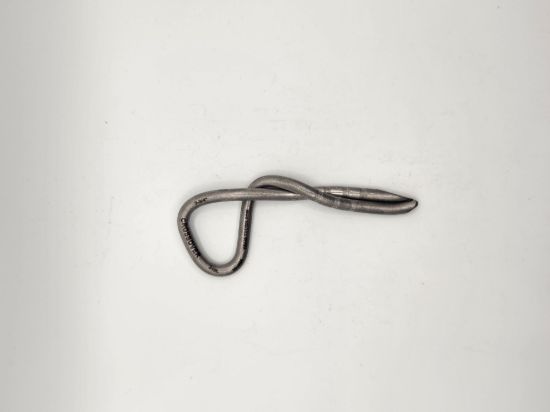

1/2" x 3-1/4", (82.5mm) Team-Tough Crossover Bolt

We are happy to introduce the shortest bolt in our Crossover line! At approx. 3-1/4", (82.5mm) this bolt is best suited for hard rock placements.

• No hammer required to place. Can be placed by simply inseting into your prepared hole with a proper bonding agent. If you use a hammer, we we recommend a min of 16oz, hard plastic deadblow or Stainless Steel hammer.
• 1/4" Crossed Wires
• Drill Hole Dia: 1/2"
• Length approx. 3-1/4" (82.5mm), * - (Length may vary +/- 1/8")
• 316L Stainless Steel.
• Made in the USA!
• Strength:

      Placed without hammer:

      Axial, (straight out pull): 30+ kN

       Raidial, (straight down pull): 34+ kN

      Wedge system set with hammer:

      Axial, (straight out pull): 32+ kN

       Raidial, (straight down pull): 36 - 38+ kN

• Visually low impact
• Constricted fit: The Patent Pending Crossover wedging system provides a mechanical advantage that locks the anchor in place while the bonding agent cures. This is helpful on over-hanging routes!
• Device usable by only a single connected user: 1P
• Not for use in soft rock!
• May or may not have labeling

• To see how the patent pending Crossover bolt works, click HERE
• To see how  to place the patent pending Crossover bolt, click HERE

**** THIS IS A GLUE IN BOLT, AND MUST BE CORRECTLY PLACED WITH A PROPER BONDING AGENT, (e.g. - GLUE) STRICTLY FOLLOWING THE BONDING AGENT MANUFACTURERS INSTRUCTIONS.

**** THIS BOLT/ANCHOR IS NOT FOR LEADING OR TOP ROPING ON WITHOUT BEING PERMANENTLY AND PROPERLY PLACED WITH A SUITABLE BONDING AGENT, (GLUE), FOLLOWING ALL OF THE BONDING AGENT MANUFACTURERS INSTRUCTIONS! ****

* When placing any glue-in bolt, always ensure that you "dry test" the placement by inserting the bolt that you intend to use into the hole! This process is highly recommended to be certain that the drill hole has the proper diameter and depth. This step should always be done prior to injecting any glue into the hole!
