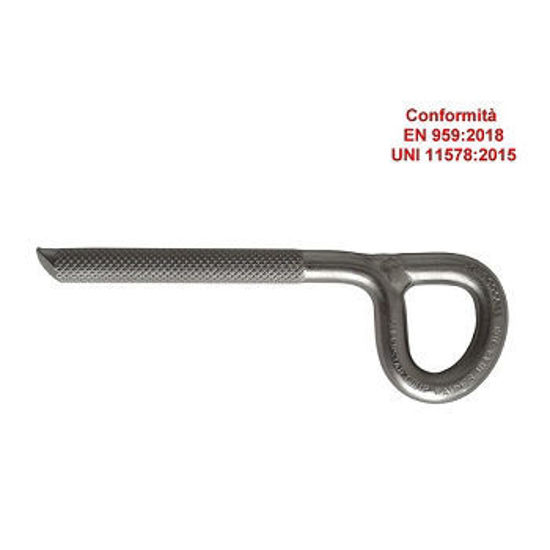

Raumer - SUPERSTAR Ø10x100 A316L

It is undoubtedly the most commonly used resin anchor in the world. The shape of the eyelet has been designed to withstand high levels of tensile or shear force.

Be the first to review this product

$7.41

excluding shipping

Availability: Out of Stock - on backorder and will be dispatched once in stock.

SKU: sku058

Qty:

specifications

The shank is knurled; This method of resin fixing has long been the most reliable and resistant, particularly when compared with resin anchors with transversal grooves or horizontal dimpled surfaces!
The knurled section is 80 mm long; this provides increased resistance to tensile force when the anchor is placed in soft or loose rock.
The anchor's eyelet can easily accommodate two carabiners simultaneously or a Ø10 mm folded and flattened rope.
The “SUPERSTAR” anchor's eyelet is perfectly smooth, allowing top-rope lower-offs without damaging the rope sheath.
Like all our climbing anchor systems, the “SUPERSTAR”’s surface is matt grey to minimise environmental and visual impact.
Dill hole dia: 12mm or 1\2" can be used

CERTIFICATION

Compliance certificate EN 959:2018 – Rock Anchors
Compliance certificate UNI 11578:2015 – Devices type A
UIAA

REFERENCES

Material: A316L
Weight: 136 gr
Dimensions of the shank: 10x100 mm
Static Shear Strenght: 30 KN
Extraction Static Strenght: 30 KN
Usable by 1 person at a time

* Click HERE for more detailed information from RaumerClimbing about this anchor!

* When placing any glue-in bolt, always ensure that you "dry test" the placement by inserting the bolt that you intend to use into the hole! This process is highly recommended to be certain that the drill hole has the proper diameter and depth. This step should always be done prior to injecting any glue into the hole!
